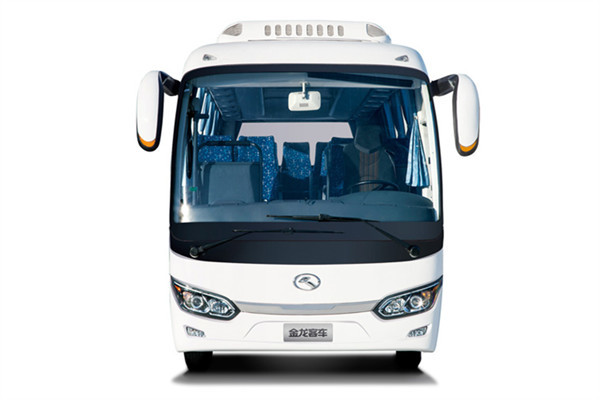

Kinglong 8m Hybrid Coach Bus 6 Speed Manual

Kinglong 8m Hybrid Coach Bus 6 Speed Manual

Product Details:

Place of Origin: China
Brand Name: Kinglong
Model Number: XMQ6802AYPHEVD5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 65,000USD per Unit
Packaging Details: Suitable for RORO Ship
Delivery Time: 75 days
Payment Terms: T/T
Supply Ability: 500 units per month
Get Best Price Contact Now

Detail Information

Name: Kinglong 8m Hybrid Coach Bus XMQ6802AYPHEVD5 24-35 Seats Diesel Electric Hybrid Key Words: Kinglong Bus, Coach Bus, Hybrid Bus, Diesel Electric Bus
Dimension: 8045*2480*3356mm Seats: 24-35
Engine: YC4G200-50 Transmission: 6 Speed Manual
Tire: 255/70R22.5
High Light:

Kinglong 8m Hybrid Coach Bus

,

Hybrid Coach Bus 6 Speed Manual

,

Kinglong Hybrid Bus 6 Speed Manual

Product Description

Kinglong 8m Hybrid Coach Bus XMQ6802AYPHEVD5 24-35 Seats Diesel Electric Hybrid



Kinglong Bus, Coach Bus, Hybrid Bus, Diesel Electric Bus



King Long's best-selling models, the Jieguan series, are now newly upgraded. In consideration of the operating cost and efficiency of passenger cars, the new Jet Crown family adds 7.5-meter and 10.5-meter models, and provides two length options on the traditional 8-meter and 9-meter models, such as: 8-meter models have 7.945 meters and 8.045 meters Meters are available in two lengths; the 9-meter model is available in 8.945 meters and 9.005 meters. With the choice of 2 to 3 speed ratios, it can achieve the best balance of economy and power no matter in the mountains, plains or cities. New Jieguan, ever-changing new life. More choices, better income, the first choice for short- and medium-distance transportation.
1. Optional push-pull or partial push-pull or closed side windows; door optional sliding glass; 2. The grille of the cooling compartment can be optional mesh type or vertical type, and the rear compartment grille is optional. Install the overhead air intake hood; 3. Different configurations cause changes in curb weight, and the optional overhead air conditioner causes the vehicle height to change. The height of the car to the overhead air conditioner is 3356mm, and the height to the safety sunroof is 3256mm; 4. The middle door (left side) can be cancelled. Set up emergency door, seat number 24-35), optional middle door (seat number 24-33). 5. Install tachograph with satellite positioning function; 6. Can be sold nationwide; 7. Type/production of energy storage device Enterprise: lithium manganate battery/CITIC Guoan Mengguli Power Technology Co., Ltd., can be externally charged, product technical stage: development period; 8. Maximum net engine power: 144kW (YC4G200-50). 9. ABS system controller model /Manufacturer: CM4XL-4S/4K(4S/4M) /Guangzhou Kemi Automotive Brake Technology Development Co., Ltd., ABS-E 4S/4M /WABCO Automotive Control System (China) Co., Ltd.



Vehicle parameters/information
Announcement model XMQ6802AYPHEVD5
use Passenger coaches, tourist coaches, group coaches
body length 8045mm
body width 2480mm
body height 3356,3256mm
Vehicle quality 8600,9000kg
total mass 12200kg
Body structure half load
number of seats 24-35, 24-33
seat form LEGO adjustable backrest passenger seat
top speed 100km/h
Heating system No heater, independent defrost, defrost machine (without external circulation 180W)
Air Conditioning System Jinlong overhead non-independent air conditioner (cooling capacity 18000Kcal/h)
Engine/Motor Parameters
engine YC4G200-50
engine power 147kW
Displacement 5200mL
engine brand Guangxi Yuchai Machinery Co., Ltd.
Emission Standards GB17691-2005 National V, GB3847-2005
Chassis parameters/configuration
Chassis model XMQ6780RHEVD5 Class III Xiamen Jinlong United Automobile Industry Co., Ltd.
front suspension rear suspension 1775/2420mm
Suspension System multi-leaf spring
Number of spring pieces 3/4,6/9,7/10,-/-
gearbox Domestic six-speed gearbox, two flexible shaft shifting mechanism
clutch Domestic clutch (Ф380MM)
number of axes 2
wheelbase 3850mm
Axle load 4200/8000kg
Front track 2074,2066mm
rear track 1800,1842mm
approaching the departure angle 10/8°
tire
Number of tires 6
Specification 255/70R22.5
