IP54 Electric Vehicle Accessories IP54 C9 Mini Split Dual Gun DC Charging Pile
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | X-CHARGE |
| Certification: | EU available |
| Model Number: | C9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1600 |
| Packaging Details: | Suitable for container loading |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 units per month |
|
Detail Information |
|||
| Name: | C9 Mini Split Super Power DC Charging Pile | Key Words: | Super Charger, Electric Car Charger, Intelligent Charger, Dual Gun Charger, DC Charger |
|---|---|---|---|
| Dimension: | 360*207*1600mm | Charging Guns: | 1 Pile With 2 Or 6 Guns |
| Protect Standard: | IP54 | Charging Power: | 120-480 KW |
| High Light: | IP54 Electric Vehicle Accessories,IP54 Dual Gun Charger,C9 Mini split DC charging pile |
||
Product Description

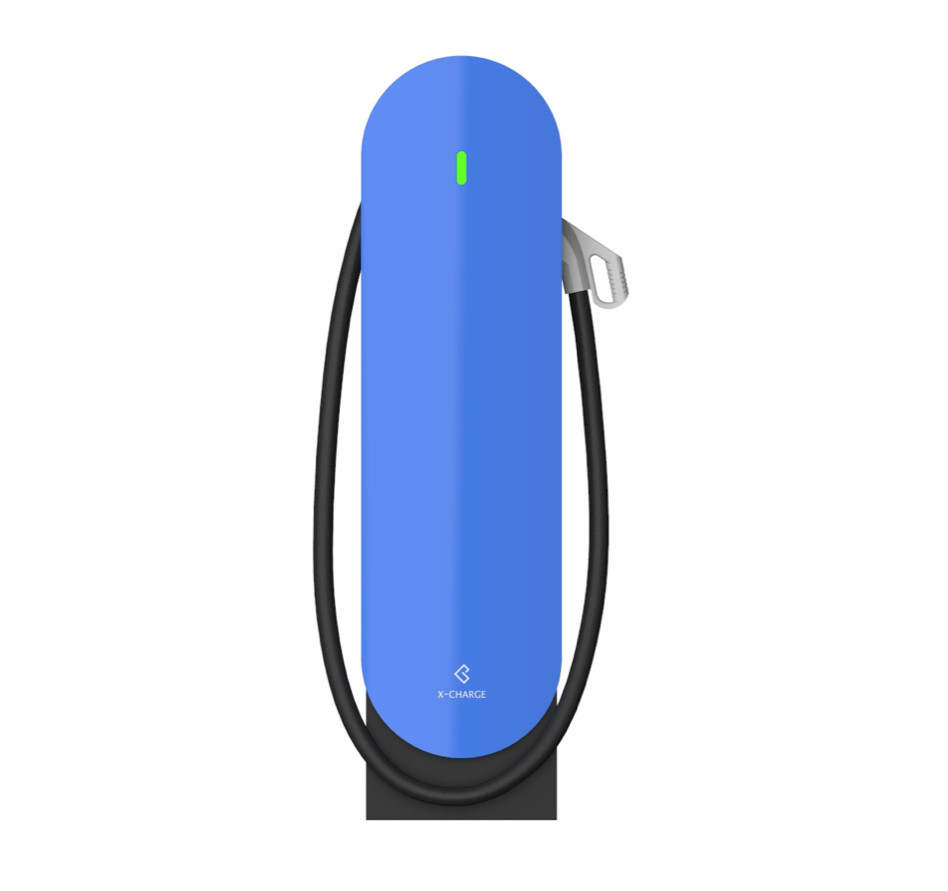

C9 Mini split super power DC charging pile
Super Charger, Electric Car Charger, Intelligent Charger, Dual Gun Charger, DC Charger
The ultra-high-power DC charging pile C9 Mini adopts a split design, and the host PowerBOX is separated from the extension, which is especially suitable for high-density charging environments. The total power can reach up to 360 kW, and the general model can be fully charged in 10 minutes, and the short-term parking can meet the needs of the whole day.
car paint shell
The arc-shaped design of the one-piece car paint shell is more unique and durable
LED charging indication
Integrated T-LED charging indicator system on the side to display the charging status of the vehicle
Small size high power
C9 Mini split machine, small footprint, high stability, easy operation; suitable for more parking spaces
Installation requirements, up to 1 drag 6
Ultra-high power starts in seconds
The split-type ultra-high-power DC charging pile C9 Mini has a single-port maximum output power of 180 kW and a total power of 360 kW. Generally, a passenger car can be fully charged for a day after a short charge, and the energy replenishment efficiency is similar to that of a gas station.
Smart Power Distribution
Under the condition that the total power remains unchanged, the intelligent control core PowerBOX of the split-type ultra-high-power DC charging pile C9 Mini can intelligently distribute the power among the substations according to the actual needs of the charging vehicle, and make full use of the charging resources.
| Product Type: Split DC Charging Pile | Item model number: C9 Mini |
| Product size: 360*207*1600mm | Combination method: one for two, one for six |
| Output mode: Intelligent power distribution | Cable length: 5.1 meters |
| Installation method: Floor type | Output power: 120-480 kW |
| Protection class: IP54 | Output voltage: ~1000VDC |
| Shell Material: Alloy | Working temperature: -30℃ ~ 65℃ |
| Timed charging: Mobile terminal online setting | Auxiliary power: 12V/24V |
| Operating System: Android | Operation mode: VIN recognition |
| Screen size: optional split screen | LED indication: Status display |
| Networking method: 4G/LAN | Cooling method: Centrifugal fan cooling |
| Occupancy billing: Support delay fee | Measurement method: AC/DC meter |
| Safety protection: overvoltage, undervoltage, overload, short circuit, reverse connection, grounding, lightning protection, water ingress, overtemperature protection |
