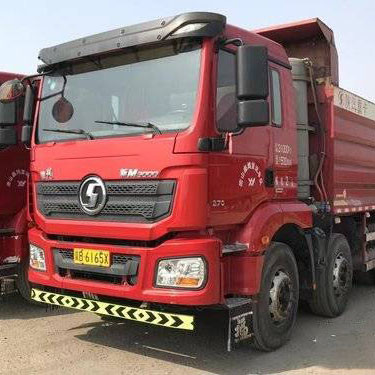

Used M3000 Shacman Dump Tipper Truck 400HP FAST 12 Speed Manual
Product Details:
| Place of Origin: | China |
| Brand Name: | Shacman |
| Model Number: | New M3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 22,000 per Unit |
| Packaging Details: | Suitable for RORO or Bulk cargo ship |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 14 units |
|
Detail Information |
|||
| Name: | Used 2020 Shacman New M3000 8*4 Dump Tipper Truck 300HP | Key Words: | Used Truck, Shacman Truck, Dump Truck, TIpper Truck, Dumping Truck, Shacman Truck |
|---|---|---|---|
| Model Year: | 2020.01 | Mileage: | 53,000km |
| Engine: | Weichai, 400HP | Transmission: | FAST 12 Speed Manual |
| Emission Standard: | Euro 5 | ||
| High Light: | shacman dump truck 400HP,M3000 shacman dump truck,Dump Tipper Truck 400HP |
||
Product Description
Used 2020 Shacman New M3000 8*4 Dump Tipper Truck 400HP
Used Truck, Shacman Truck, Dump Truck, TIpper Truck, Dumping Truck, Shacman Truck
Shaanxi Automobile Datong mining dump truck is a dump truck tailored for open-pit mining areas. Its main advantages are firm structure and durable skin.
The overall structure of this dump truck has been strengthened according to the working environment of the open-pit coal mine and the characteristics of the loaded goods. It is an upgraded work based on the analysis and resolution of the defects of the competitors' products and optimized design. It realizes the close combination of vehicles and working conditions, and is the choice for users to create value.
Product selling point
Weichai WP12. engine (Youshun brake), Cummins ISM11E5 engine (Jikebo brake), the torque is greater than the same horsepower competing products, Fast double intermediate shaft large center distance structure gearbox (telescopic rod shift), Reinforced cab, oil-bath air filter, reinforced drive shaft, high reliability shock absorber, new application of APU+ oil-water separator, double-travel relay valve, brake safety, maintenance-free battery and water tank protection grille.
Excellent load bearing
The high-strength alloy 850X300 (8+7) outer three-layer frame, the longitudinal beam height is 300mm, the wall thickness of the main beam and the inner lining beam are 8mm and 7mm respectively, and the thickness of the front reinforced leaf spring can reach 18mm. After unloading, the total thickness of the leaf spring is increased by 24mm. It matches the 9.5-ton front axle of Hande MAN technology and the 16-ton MAN technology casting axle. The bearing strength is increased by 27% and the bending strength is increased by 30%. With the four-horse-bolt suspension system, it is very proud. A harsh working condition.
high passability
The urea tank is increased by 130mm, the SCR box of the exhaust system is increased by 70mm, the newly developed oil-bath air filter, and the ground clearance of chassis components such as the ground clearance is increased by 50mm.
| Basic Information | |||
| Announcement model: | SX3319HD276 | Drive form: | 8X4 |
| Wheelbase: | 1800+2675+1400mm | engine: | Weichai WP12.400E62 |
| Gearbox: | Fast 12JSD200T-B | Rear axle ratio: | 5.262 |
| Body length: | 8.7 meters | Body width: | 2.55 meters |
| Body height: | 3.5 meters | Front track: | 2036/2036mm |
| Rear Track: | 1860/1860mm | Vehicle weight: | 15.5 tons |
| Rated load: | 15.37 tons | Total mass: | 31 tons |
| Tonnage class: | Heavy Truck | Approach angle: | 17 degrees |
| Departure angle: | 23 degrees | Origin: | Shaanxi Xi'an |
| Market segments: | Urban construction waste | Overall ratio: | 5.262 |
| Engine parameters | |||
| engine model: | Weichai WP12.400E62 | Engine Brand: | Weichai |
| Number of cylinders: | 6 | Fuel type: | diesel fuel |
| Displacement: | 11.6L | Emission Standards: | country six |
| Maximum horsepower: | 400 hp | Maximum output power: | 294kW |
| Max torque: | 2000N m | Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm | Engine form: | CR+DOC+DPF+Hi_SCR |
| Cargo box parameters | |||
| Cargo Length: | 5.6 meters | Cargo width: | 2.35 meters |
| Cargo height: | 1.5 meters | Cargo box form: | self-unloading |
| Cab parameters | |||
| Cab: | New M3000 | ||
| Transmission parameters | |||
| Gearbox Model: | Fast 12JSD200T-B | Gearbox brand: | Fast |
| Forward gear: | 12 gears | Number of reverse gears: | 2 |
| tank | |||
| Fuel tank material: | Aluminum alloy | Fuel tank capacity: | 300L |
| Chassis parameters | |||
| Front axle allowable load: | 6500/6500kg | Description of rear axle: | Hande 16T Super Bridge |
| Rear axle allowable load: | 18000 (two-axis group) kg | Speed ratio: | 5.262 |
| Number of spring pieces: | 14/14/12, 10/10/10 | ||
| tire | |||
| Tire specifications: | 11.00R20 18PR, 12.00R20 18PR, 12R22.5 18PR | Number of tires: | 12个 |
| control configuration | |||
| ABS Anti-lock Braking: | ● | ||
